Phốt Piston PU

Giá: Liên hệ

Mã sản phẩm:

Hãng sản xuất : Taiwan - U.K - Japan
Bảo hành :
Tình trạng: Còn hàng

đặt hàng

về trang trước

< >

CHI TIẾT SẢN PHẨM

Lego 2.jpg

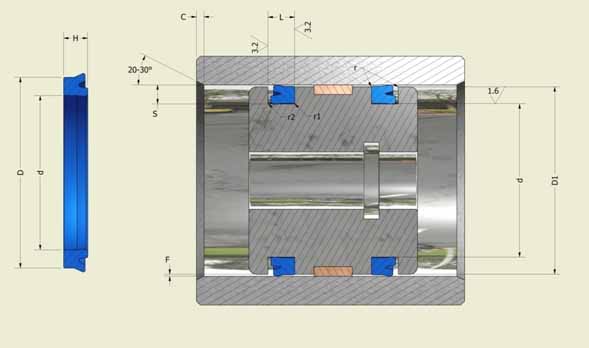

Model	D	Tolerance Js11	d	Tolerance f9	H	L +0.25 0	C
	18	+0.06 -0.06	8	-0.013 -0.049	7.5	8.5	2.5
ODI	19.2	+0.06 -0.06	11.2	-0.016 -0.059	5	5.7	2.5
ODI	20	+0.07 -0.07	10	-0.020 -0.072	6	7	2.5
ODI	20	+0.07 -0.07	10	-0.020 -0.072	7.5	8.5	2.5
ODI	20	+0.07 -0.07	10	-0.020 -0.072	8	9	2.5
ODI	20	+0.07 -0.07	12	-0.020 -0.072	5	5.7	2.5
ODI	22	+0.07 -0.07	14	-0.020 -0.072	5	5.7	2.5
ODI	24	+0.07 -0.07	14	-0.020 -0.072	7.5	8.5	3.5
ODI	25	+0.07 -0.07	15	-0.020 -0.072	6	7	3.5
ODI	25	+0.07 -0.07	15	-0.020 -0.072	8	9	3.5
ODI	25	+0.07 -0.07	17	-0.020 -0.072	5	5.7	3.5
ODI	26	+0.07 -0.07	16	-0.020 -0.072	7.5	8.5	3.5
ODI	26	+0.07 -0.07	18	-0.020 -0.072	5	5.7	3.5
ODI	28	+0.07 -0.07	15	-0.020 -0.072	10	11	3.5
ODI	28	+0.07 -0.07	20	-0.020 -0.072	5	5.7	2
ODI	30	+0.07 -0.07	20	-0.020 -0.072	5	5.7	3.5
ODI	30	+0.07 -0.07	20	-0.020 -0.072	6	7	3.5
ODI	30	+0.07 -0.07	20	-0.020 -0.072	8	9	3.5
ODI	30	+0.07 -0.07	22.4	-0.020 -0.072	5	5.7	2
ODI	31	+0.08 -0.08	18	-0.020 -0.072	10	11	3.5
ODI	31.5	+0.08 -0.08	18.5	-0.020 -0.072	8	9	3.5
ODI	31.5	+0.08 -0.08	18.5	-0.020 -0.072	10	11	3.5
ODI	31.5	+0.08 -0.08	21.5	-0.020 -0.072	6	7	3.5
ODI	31.5	+0.08 -0.08	21.5	-0.020 -0.072	8	9	3.5
ODI	31.5	+0.08 -0.08	23.5	-0.020 -0.072	5	5.7	2
ODI	33	+0.08 -0.08	20	-0.020 -0.072	10	11	3.5
ODI	33	+0.08 -0.08	25	-0.020 -0.072	5	5.7	2
ODI	35	+0.08 -0.08	22	-0.020 -0.072	10	11	3.5
ODI	35	+0.08 -0.08	25	-0.020 -0.072	6	7	3.5
ODI	35	+0.08 -0.08	25	-0.020 -0.072	8	9	3.5
ODI	35	+0.08 -0.08	27	-0.020 -0.072	5	5.7	2
ODI	35.4	+0.08 -0.08	22.4	-0.020 -0.072	10	11	3.5
ODI	35.5	+0.08 -0.08	22.5	-0.020 -0.072	8	9	3.5
ODI	35.5	+0.08 -0.08	22.5	-0.020 -0.072	10	11	3.5
ODI	35.5	+0.08 -0.08	25.5	-0.020 -0.072	6	7	3.5
ODI	35.5	+0.08 -0.08	25.5	-0.020 -0.072	8	9	3.5
ODI	35.5	+0.08 -0.08	27.5	-0.020 -0.072	5	5.7	2
ODI	35.5	+0.08 -0.08	28	-0.020 -0.072	5	5.7	2
ODI	38	+0.08 -0.08	25	-0.020 -0.072	10	11	3.5
ODI	40	+0.08 -0.08	25	-0.020 -0.072	9	10	3.5
ODI	40	+0.08 -0.08	25	-0.020 -0.072	10	11	3.5
ODI	40	+0.08 -0.08	27	-0.020 -0.072	8	9	3.5
ODI	40	+0.08 -0.08	27	-0.020 -0.072	10	11	3.5
ODI	40	+0.08 -0.08	30	-0.020 -0.072	6	7	2.5
ODI	40	+0.08 -0.08	30	-0.020 -0.072	8	9	3.5
ODI	41	+0.08 -0.08	28	-0.020 -0.072	10	11	3.5
ODI	41.5	+0.08 -0.08	30	-0.020 -0.072	6	7	2.5
ODI	43	+0.08 -0.08	30	-0.020 -0.072	10	11	3.5
ODI	44.5	+0.08 -0.08	31.5	-0.025 -0.087	10	11	3.5
ODI	45	+0.08 -0.08	30	-0.020 -0.072	9	10	3.5
ODI	45	+0.08 -0.08	30	-0.020 -0.072	10	11	3.5
ODI	45	+0.08 -0.08	32	-0.025 -0.087	8	9	3.5
ODI	45	+0.08 -0.08	32	-0.025 -0.087	10	11	3.5
ODI	45	+0.08 -0.08	35	-0.025 -0.087	6	7	2.5
ODI	45	+0.08 -0.08	35	-0.025 -0.087	8	9	3.5
ODI	45	+0.08 -0.08	35.5	-0.025 -0.087	6	7	2.5
ODI	50	+0.08 -0.08	34	-0.025 -0.087	10	11	4
ODI<
